ZOKOP 3 Zone 9000 + 9000 + 12000 BTU WIFI Mini Split AC/Heating System 208-230V

Introductions:

ZOKOP smart Split Type Type Inverter Air Conditioners with heating function are made with high quality compressor, high speed pure copper motor & inner spiral copper tube which are powerful to quickly cool down / warm your home, office, garage or apartment for maximum comfort in quiet operation, perfect appliance in hot Summer or cold Winter. Comparing with others, machine featured with high SEER grade, which means that it is more energy efficient and much money saving! This unit also has Sleep, Turbo, ECO, Mute and Timer functions. These functions help you enjoy the true individual comfort.  Let the ZOKOP Mini Split Air Conditioner 3-Zone be the solution to your home's heating and cooling needs.

Specifications:

3*Indoor Unit:
1. Color: White
2. Power Supply: 208/230V, 60Hz
3. Cooling :
    Rated Capacity: 9000Btu/h, 12000Btu/h
    Rated SEER2: 19Btu/W.h
    Rated EER2: 10Btu/W.h
4. Heating:
    Rated Capacity: 10000Btu/h, 12200Btu/h
    HSPF2 Rating (Region IV): 8.5Btu/W.h
5. Operation temperature: (16~31)degree Celsius/(61~88)degree Fahrenheit
6. Use the air conditioner in the following temperature conditions:
    Indoor(cooling/heating):
    17 ~32degree Celsius(63 ~90degree Fahrenheit)/0 ~27degree Celsius(32 ~80degree Fahrenheit)
    Outdoor(cooling/heating):
    15 ~55degree Celsius(59 ~131degree Fahrenheit)/-15 ~24degree Celsius(5 ~75 degree Fahrenheit)
7. Moisture removal: 1.1L/h, 6L/h
8. Indoor air circulation/Hi : 600m³/h, 650m³/h
9. Indoor noise level at cooling(Turbo/High/Med./Low/Mute): 42/39/34/29/27dB(A)
10. Application Area: 9000BTU Up to 400 sq.ft, 12000BTU Up to 550 sq.ft
11. Certificate : AHRI, ETL

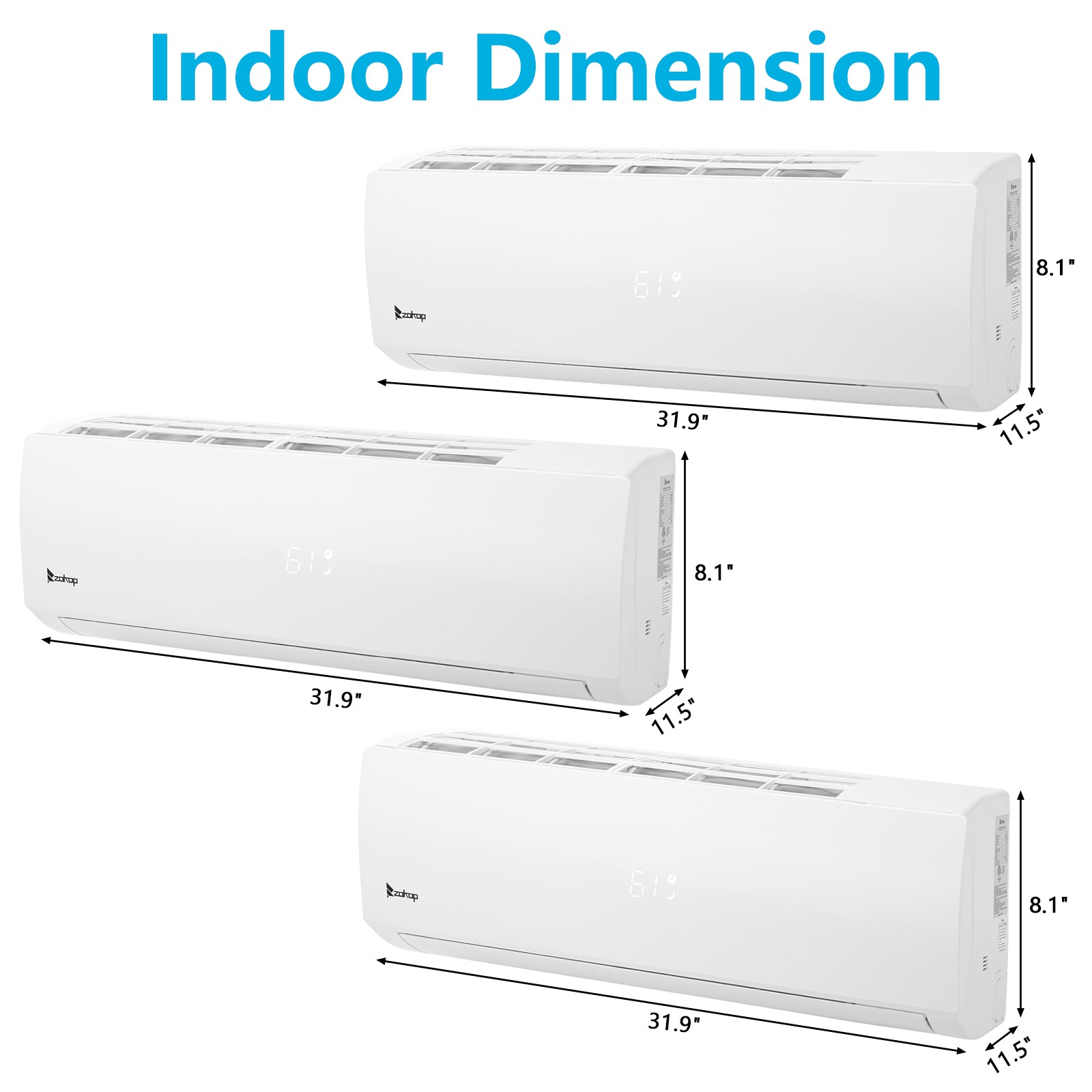

12. Indoor Dimensions: 81.1x29.2x20.5cm(31.9x11.5x8.1inch)
13. Indoor Package dimensions: 88.5x36.6x27.8cm(34.8x14.4x10.9inch)
14. Indoor Net weight: 9.5kg/20.9Ibs
15. Indoor Gross weight: 12.7kg/28Ibs

1* Outdoor Unit:
1. Cooling Capacity: 27000BTU/h
2. Heating Capacity: 27000BTU/h
3. SEER2: 19.0BTU/h.W
4. Rated Voltage: 208/230V~60Hz
5. Refrigerant type: R410A/2200g/77.6 ozs

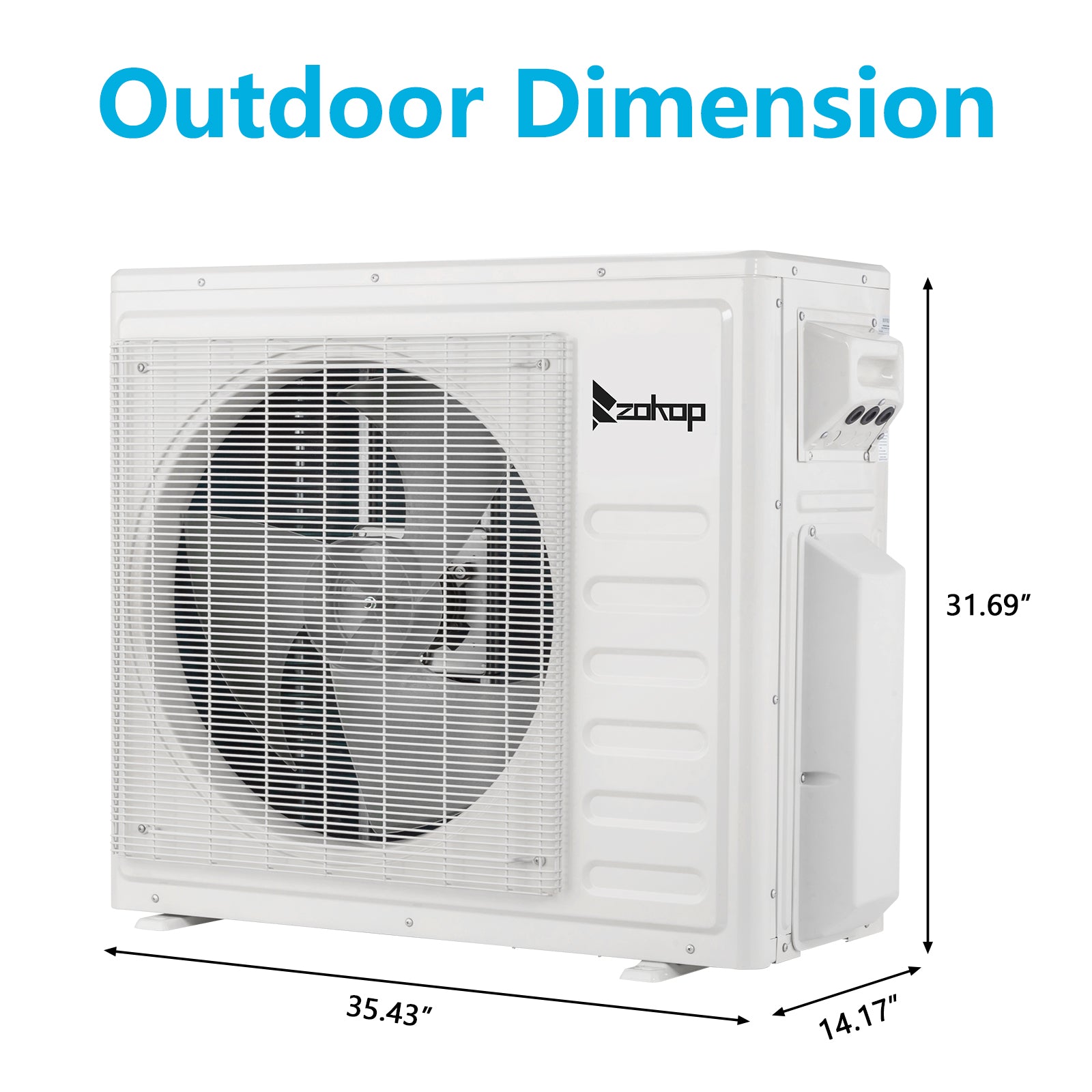

6. Outdoor Dimensions: 90x36x80.5cm(35.43x14.17x31.69inch)
7. Outdoor Package dimensions: 102.8×47.5×86.5cm(40.47x18.7x34.06inch)
8. Outdoor Net weight: 56kg/123.5lbs
9. Outdoor Gross weight: 60.5kg/133.4lbs

3*Copper pipes :
1. Connecting Pipe：Gas 3/8''-24.6FT/7.5M  Liquid 1/4''-24.6FT/7.5M
2. Signal Cable Length: 24.6FT/7.5M
3. Drain Hose：6.6FT/2M

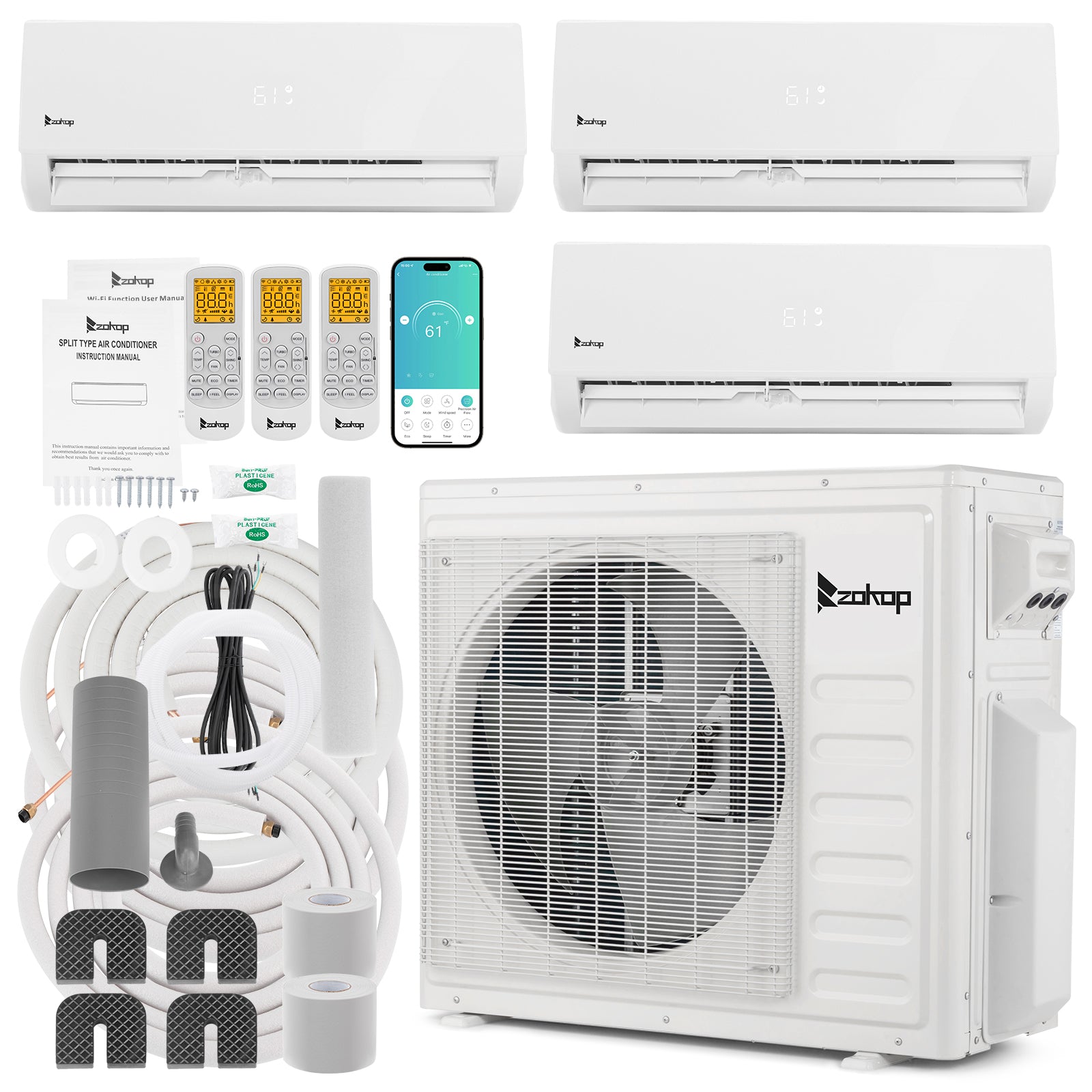

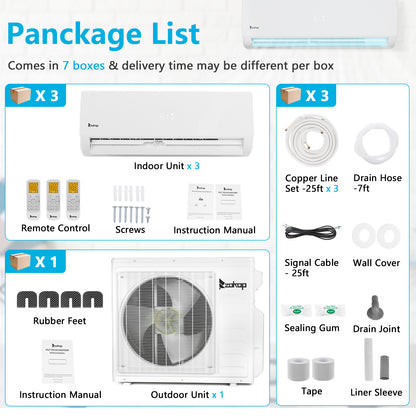

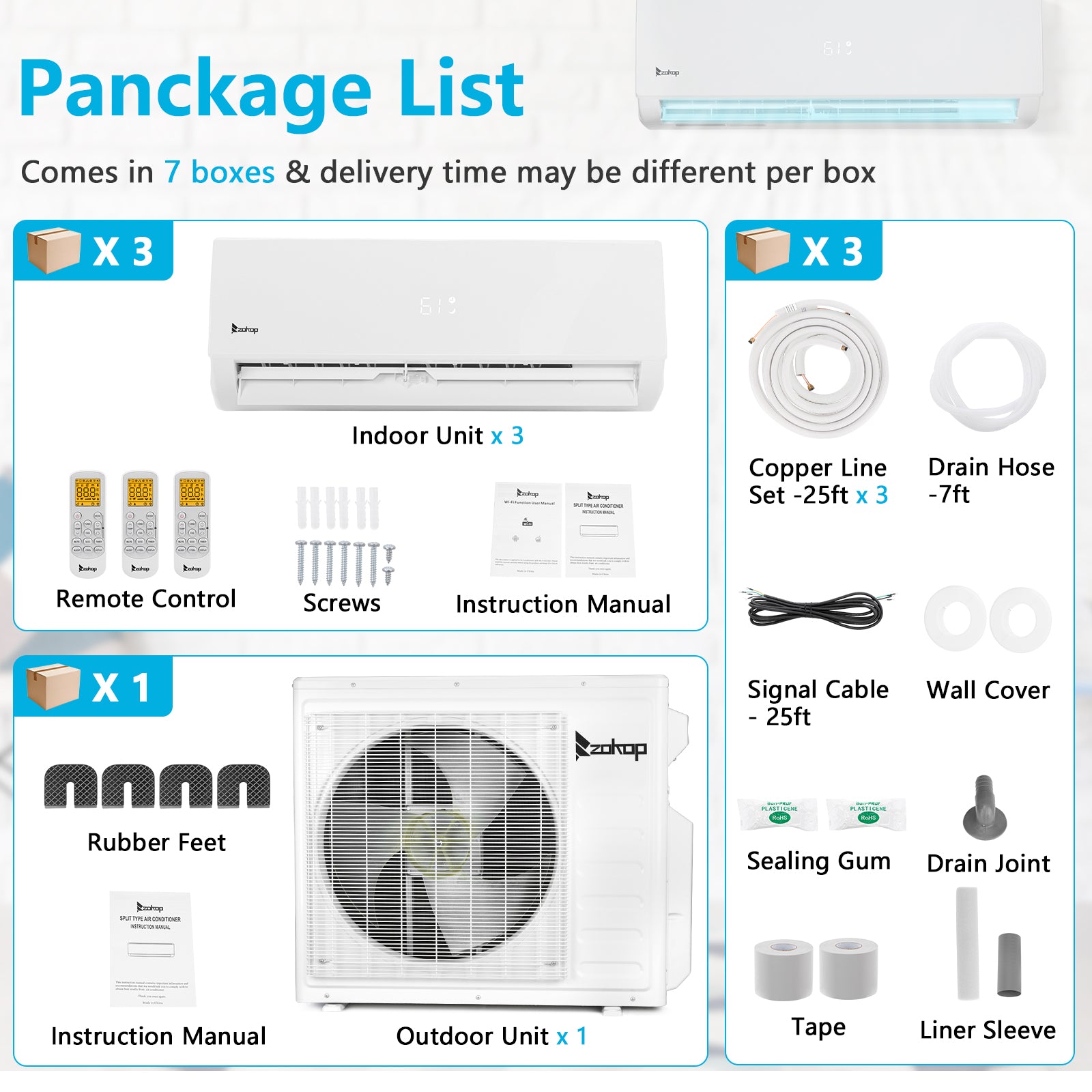

Package Includes:

3*Indoor box includes:
1 x Indoor Unit
1 x Remote Control
1 x Screw Pack

1*Outdoor box includes:
1 x Outdoor Unit
4 x outdoor feet rubber

3*Copper pipes box includes：
1 x Copper pipes set(24.6FT)
1 x Signal Cable(24.6FT/7.5M)
1 x Drain pipe(6.6FT)
1 x Drain pipe adapter
2 x Sealant
2 x Wall sleeve cover
2 x Pipe tape
1 x Insulation pipe
1 x Wall sleeve

• ❄️[MULTIPLE ROOMS] Comes with 3 indoor air handlers 9,000 BTU +9,000BTU+ 12,000 BTU with separate controller for individual rooms and 1 outdoor condenser. Enjoy individual temperature controls in each room for ideal climate control. This unit provides cooling and heating for up to 1350Sq. Ft (2 indoor unit recommended area 400 Sq. Ft, another one 550 Sq. Ft) and able to work in environments as low as 5 degrees Fahrenheit. 3pcs 24.6ft copper pipes (Standard size 1/4" & 3/8" outer dimension) and 3 installation kits included. The length for drain pipe is 78.7". Featured with Cooling, Heating, Dehumidifying and Fan only modes in one compact unit. It is ideal for using in home's bedroom, living roo, kitchen, office, apartment, garage and so on.
• ❄️[Energy Saving] ZOKOP the speed of the air conditioner equipped with frequency converter directly affects the service efficiency of the air conditioner. The frequency converter is a control system used to control & adjust the speed of the compressor to make it always in the best speed state, so as to improve the energy efficiency ratio (at least 30% more energy-saving than the conventional air conditioner). This 19 SEER2, 9,000 BTU +9,000BTU+ 12,000 BTU,208/230V~60Hz, AHRI Certified AC unit with a heat pump(up to 5℉/-15℃) is featured high quality compressor for more efficient cooling and longer working life; Higher SEER grade & Eco-friendly design which leads you for money saving ( please confirm voltage before making purchase) .
• ❄️[Quiet Cooler & Heater] Ultra Silent at only 27-42 dB(A) and beautifully built adds a touch of elegant charm to your room.In sleeping & mute mode, It's able to maintain the temperature while you are sleeping. And you can use the 24-hour timer in combination to free you from additional worries. Featured with 4-way swing function, unit provides scientific airflow in your room to suit your comforts in just a few minutes.Best choice to decorate your home.
• ❄️[Smart Operation] Operating this conditioner is an easy-understanding and enjoyable cooling experience (61-88degree Fahrenheit ). We can set all functions on remote control (Fan Speed Selection, Sleep Mode, 24 Hour Timer, ECO Mode, Turbo Mode, and Mute Mode). Built-in microprocessor chip & sensor in the remote controller makes it more convenient to operate the air conditioner from a distance. Digital LED display controls offer precise temperature adjustments and the remote control lets you control the air conditioner from across the room.
• ❄️[Washable Air Filter] This indoor AC machine comes with a permanently washable and easy cleaning air filter. Keep your air conditioner running more efficiently by cleaning the filter once a month.
